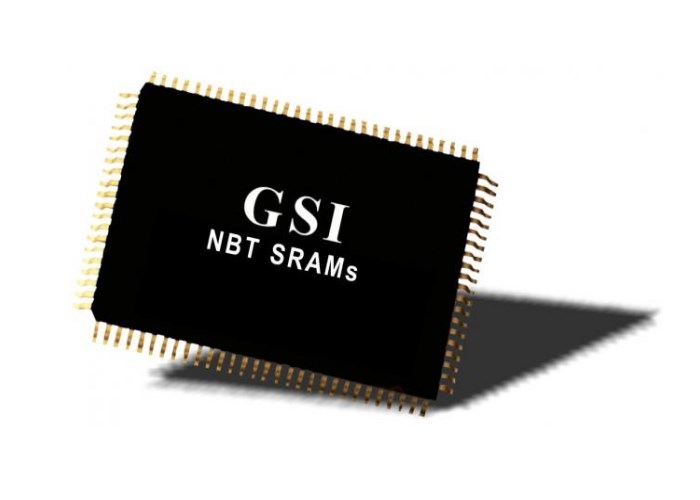

NBT SRAMs

GSI Technology’s No Bus Turnaround (NBT) product portfolio is the largest in the industry with six different densities in x18, 32, 36 and 72 bit widths. Our NBT SRAMs provide the fastest clock rates and lowest power of any in the world.


NBT SRAMs are synchronous, burst-capable memories with a simplified interface that is designed to use a data bus’s maximum bandwidth. NBT devices do not require “turnaround” cycles (idle clock cycles between a read and write operation). NBT SRAMs are used in networking, industrial, automotive and medical imaging applications where a mid-range performance point (typically a 333–166 MHz clock rate) is required.



Name Density Config. Cycle Time (MHz) Access Time (ns) Voltage (V) Package 6/6 ROHS Temp Special Features Status
NBT SRAMs
View 2245 products
144Mb, 72Mb, 36Mb, 18Mb, 9Mb, 4Mb, 288Mb x18, x36, x72, x32 Up to 400 As Low As 4 2.5, 3.3, 1.8 119 BGA, 209 BGA, 100 TQFP, 165 BGA, Ceramic QFP no, yes Comm, Ind, Mil See Individual Products Production, Pre-Qual, Production-NRND, Active
Part Number Density Cofig. Cycle Time (MHz) Access Time (ns) Voltage (V) Package 6/6 RoHS Temp Special Features Status
GS881Z36CD-200V 9Mb x36 200 6.5 1.8, 2.5 165 BGA no Comm JTAG Production
GS8320Z36GT-133IV 36Mb x36 133 8.5 1.8, 2.5 100 TQFP yes Ind none Production-NRND
GS8644Z18GE-225I 72Mb x18 225 6.5 2.5, 3.3 165 BGA yes Ind JTAG, FLXDrive Production
GS8162Z18DGD-150I 18Mb x18 150 7.5 2.5, 3.3 165 BGA yes Ind JTAG, FLXDrive Production
GS8161Z36BGD-250I 18Mb x36 250 5.5 2.5, 3.3 165 BGA yes Ind JTAG Production-NRND
GS882Z36CGB-250I 9Mb x36 250 5.5 2.5, 3.3 119 BGA yes Ind JTAG, FLXDrive Production
GS8322Z18GB-166I 36Mb x18 166 8 2.5, 3.3 119 BGA yes Ind JTAG, FLXDrive Production-NRND
GS8162Z36DB-200 18Mb x36 200 6.5 2.5, 3.3 119 BGA no Comm JTAG, FLXDrive Production
GS8322Z18AGD-200I 36Mb x18 200 6.5 2.5, 3.3 165 BGA yes Ind JTAG, FLXDrive Production
GS82564Z18GB-333IV 288Mb x18 333 4.5 1.8, 2.5 119 BGA yes Ind JTAG, FLXDrive Production
GS8642Z36GB-167I 72Mb x36 167 8 2.5, 3.3 119 BGA yes Ind JTAG, FLXDrive Production
GS881Z18CD-200I 9Mb x18 200 6.5 2.5, 3.3 165 BGA no Ind JTAG Production
GS8321Z36E-200I 36Mb x36 200 7.5 2.5, 3.3 165 BGA no Ind JTAG Production-NRND
GS8161Z18DD-333 18Mb x18 333 4.5 2.5, 3.3 165 BGA no Comm JTAG Production
GS8322Z36AB-333 36Mb x36 333 4.5 2.5, 3.3 119 BGA no Comm JTAG, FLXDrive Production
GS81282Z18GD-250I 144Mb x18 250 5.5 2.5, 3.3 165 BGA yes Ind JTAG, FLXDrive Production
GS81284Z36B-200V 144Mb x36 200 7.5 2.5, 1.8 119 BGA no Comm JTAG, FLXDrive Production
GS8162Z72CGC-200I 18Mb x72 200 6.5 2.5, 3.3 209 BGA yes Ind JTAG, FLXDrive Production
GS8162Z36BD-200V 18Mb x36 200 6.5 1.8, 2.5 165 BGA no Comm JTAG, FLXDrive Production-NRND
GS8322Z18GE-133V 36Mb x18 133 8.5 1.8, 2.5 165 BGA yes Comm JTAG, FLXDrive Production-NRND
